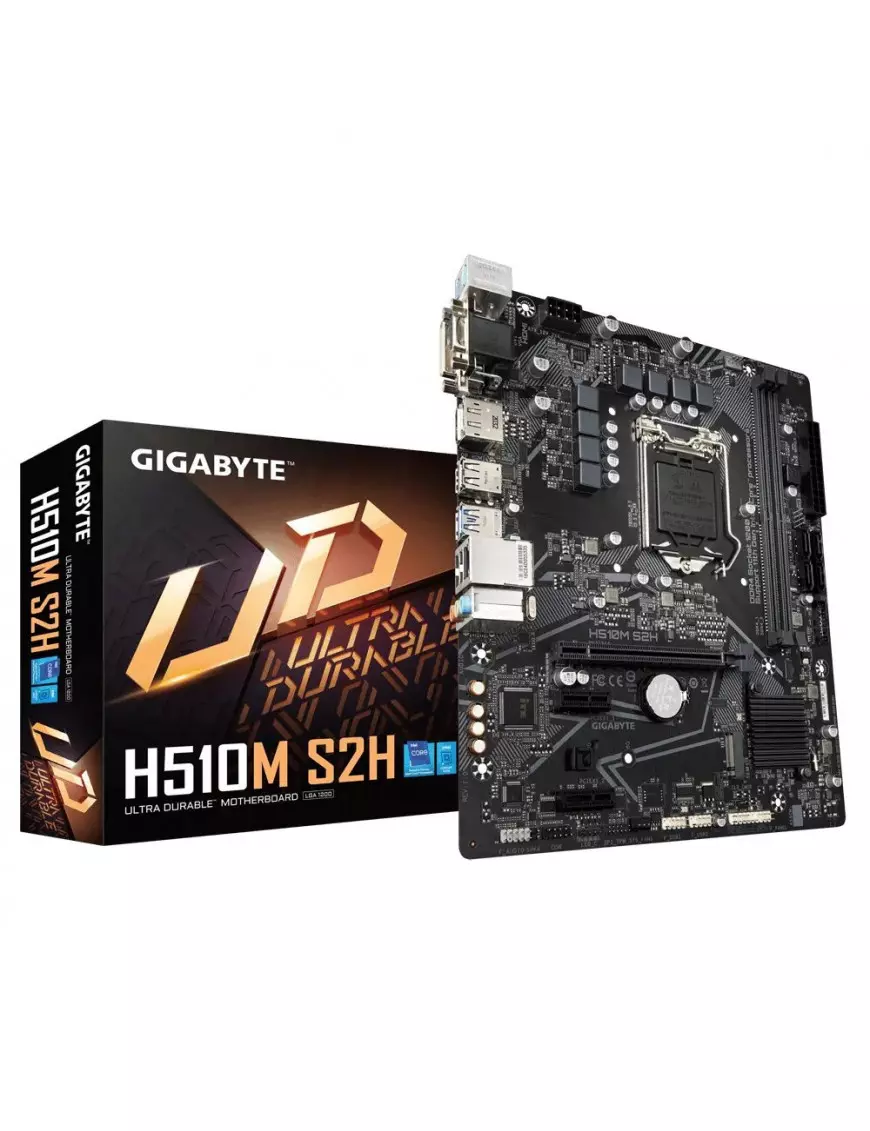

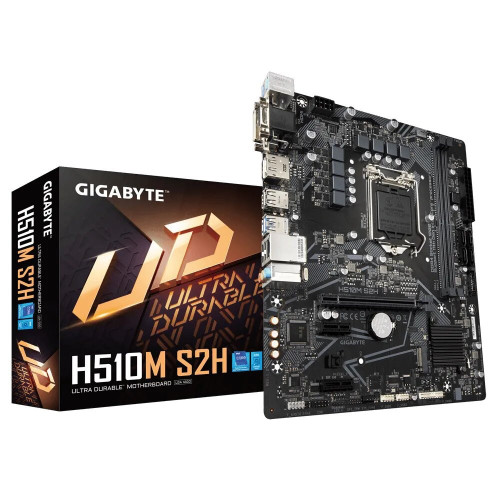

    Carte Mère Gigabyte H510M-S2H mATX LGA1200 DDR4 USB3.2 M.2 HDMI


    • Compatible Processeurs Intel® Core™ 11e et 10e Gen
    • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
    • M.2 Ultra Rapide avec PCIe Gen3 X4 & Interface SATA
    • Réseau Exclusif GIGABYTE Gaming 8118 avec Gestion de la Bande Passante
    • 4 Sorties d'Affichage
    • Condensateurs Audio Haut de Gamme et Audio Noise Guard
    • Smart Fan 6 avec Multiples Capteur de Température, Connecteurs Hybrides de Ventilateur avec FAN STOP
    • GIGABYTE APP Center, Simple et Facile à Utiliser
    • Protection Anti-Soufre

    99,99 €
     TTC

    Quantité

     En Stock



    Paiement sécurisé par CB



    Expédié le jour même



    Retour sous 14 jours

    Request info about this product

    Processeur

    LGA1200 package:

    • 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    • 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*

    * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.

    L3 cache varies with CPU

    (Please refer to "CPU Support List" for more information.)

    Chipset

    • Intel® H510 Express Chipset

    Mémoire

    11th Generation Intel® Core™ i9/i7/i5 processors:

    • Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

    10th Generation Intel® Core™ i9/i7 processors:

    • Support for DDR4 2933/2666/2400/2133 MHz memory modules

    10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:

    • Support for DDR4 2666/2400/2133 MHz memory modules
    • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules

    (Please refer "Memory Support List" for more information.)

    Carte Graphique Intégrée

    Integrated Graphics Processor-Intel® HD Graphics support:

    • 1 x D-Sub port*, supporting a maximum resolution of 1920x1200@60 Hz

    * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.

    • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

    * The DVI-D port does not support D-Sub connection by adapter.

    • 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz

    * Support for HDMI 1.4 version and HDCP 2.3.

    • 1 x DisplayPort*, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3

    * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.

    • Support for up to 2 displays at the same time

    (Graphics specifications may vary depending on CPU support.)

    Audio

    • Realtek® Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel

    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

    Réseau

    • Realtek® GbE LAN chip (1 Gbit/100 Mbit)

    Port d'expansion

    • 1 x PCI Express x16 slot, running at x16

    (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*

    * Supported by 11th Generation processors only.

    • 2 x PCI Express x1 slots

    (The PCI Express x1 slots conform to PCI Express 3.0 standard.)

    Interface de Stockage

    Chipset:

    • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

    * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.

    • 4 x SATA 6Gb/s connectors

    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

    USB

    Chipset:

    • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    Chipset+USB 2.0 Hub:

    • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)

    Connecteurs d'entrées/sorties internes

    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 4 x SATA 6Gb/s connectors
    • 1 x CPU fan header
    • 2 x system fan headers
    • 1 x RGB LED strip header
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB 3.2 Gen 1 header
    • 2 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    • 1 x serial port header
    • 1 x Clear CMOS jumper

    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

    Connecteur du Panneau Arrière

    • 1 x PS/2 keyboard port
    • 1 x PS/2 mouse port
    • 1 x D-Sub port
    • 1 x DVI-D port
    • 1 x DisplayPorts
    • 1 x HDMI port
    • 2 x USB 3.2 Gen 1 ports
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ-45 port
    • 3 x audio jacks

    Contrôleur d'Entrée/Sortie

    • iTE® I/O Controller Chip

    Monitorage Matériel

    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Overheating warning
    • Fan fail warning
    • Fan speed control

    * Whether the fan speed control function is supported will depend on the cooler you install.

    BIOS

    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Fonctionnalités Exclusives

    • Support for APP Center

    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    • @BIOS
    • Ambient LED
    • EasyTune
    • Fast Boot
    • Game Boost
    • ON/OFF Charge
    • Smart Backup
    • System Information Viewer
    • Support for Q-Flash
    • Support for Xpress Install

    Logiciels Fournis

    • Norton® Internet Security (OEM version)
    • Realtek® 8118 Gaming LAN Bandwidth Control Utility

    Système d'Exploitation

    • Support for Windows 10 64-bit

    Dimensions

    • Micro ATX Form Factor; 24.4cm x 21.0cm
    Code EAN-13 : 4719331814748

    Fiche technique

    Référence Fabricant
    H510M-S2H
    Format Carte Mère
    Micro ATX
    Chipset Carte Mère
    Intel H510
    Socket CPU
    Intel 1200
    Fréquence Mémoire supportée
    3200 Mhz
    Type de Mémoire
    DDR4 (DIMM 288 pins)
    LED RGB
    Non
    Wifi intégré
    Non
    Dimensions (LxPxH)
    24.4 x 21 cm
    Garantie Constructeur (Mois)
    36
