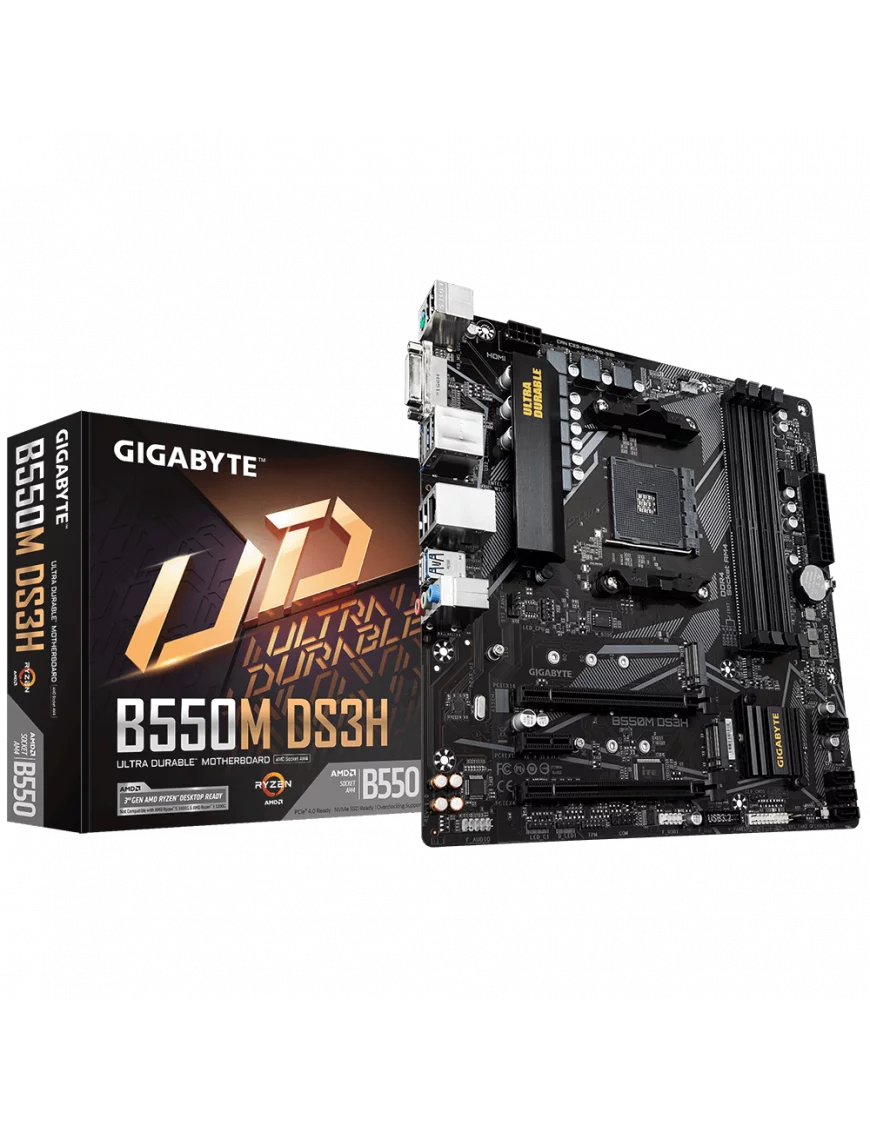

Carte Mère Gigabyte B550M-DS3H mATX AM4 DDR4 USB3.2 M.2 DVI HDMI DP


  • Compatible avec processeurs AMD Ryzen™ 3ème Gen
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • VRM Numérique 5+3 Phases avec MOSFETs à faible RDS(on)
  • Slot Ultra Durable™ PCIe 4.0 Ready x16
  • Dual M.2 NVMe PCIe 4.0/3.0 x4
  • Condensateurs Audio Haute Qualité et Audio Noise Guard
  • LAN GbE GIGABYTE 8118 Gaming avec Gestion de bande passante
  • HDMI & DVI
  • RGB FUSION 2.0 compatible avec LEDs adressables et bandes LED RGB
  • Smart Fan 5 incluant multiple capteurs de températures, Headers Hybrides pour ventilateurs avec FAN STOP
  • Q-Flash Plus : Mise à jour du BIOS sans installation de CPU, RAM ou carte graphique
  • Résistance au souffre

104,99 €
Quantité

 En Stock



Paiement sécurisé par CB



Expédié le jour même



Retour sous 14 jours

Demander des informations sur ce produit (Disponibilité, informations complémentaires...)

CPU

  • AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors
(Please refer to "CPU Support List" for more information.)

Chipset

  • AMD B550

Mémoire

  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • 3rd Gen AMD Ryzen™ Processors:
Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • New Generation AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)

Onboard Graphics

Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors
  • 1 x DVI-D port supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3 and HDR.
Maximum shared memory of 16 GB

Audio

  • Realtek® ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

Lan

  • Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots

  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot (PCIEX4), integrated
Supporting PCIe 3.0 x4 mode
  • 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode

Storage Interface

  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
  • 2 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • 4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

USB

CPU
  • 4 x USB 3.2 Gen 1 Type-A ports on the back panel
Chipset
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
  • 1 x Q-Flash Plus button

Back Panel Connectors

  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks

I/O Controller

  • iTE® I/O Controller Chip

H/W Monitoring


  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  • Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install

Bundle Software


  • Norton® Internet Security (OEM version)
  • Realtek® 8125 Gaming LAN Bandwidth Control Utility

Operating System

  • Support for Windows 10 64-bits

Form Factor

  • Micro ATX Form Factor; 24.4 cm x 24.4 cm

Remarques

  • Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  • Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Pour plus d'informations, vous pouvez consulter la page du produit sur le site du constructeur, disponible ICI

Code EAN-13 : 4719331809416

Fiche technique

Référence Fabricant
B550M DS3H
Format Carte Mère
Micro ATX
Chipset Carte Mère
AMD B550
Socket CPU
AMD AM4
Fréquence Mémoire supportée
3200 Mhz
Type de Mémoire
DDR4 (DIMM 288 pins)
Dimensions (LxPxH)
24.4 x 24.4 cm
Garantie Constructeur (Mois)
36
