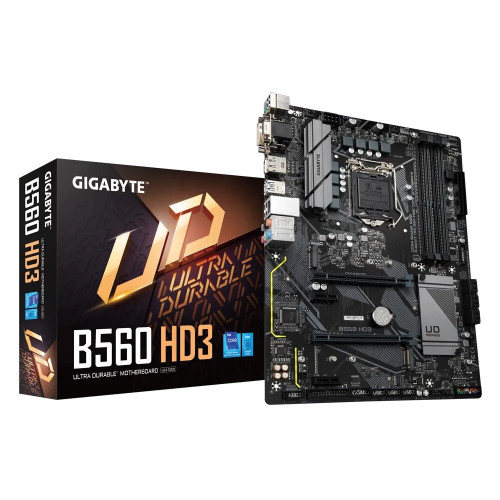

    Carte Mère Gigabyte B560 HD3 ATX LGA1200 DDR4 USB3.2 M.2


    • Supports 11th and 10th Gen Intel® Core™ Series Processors
    • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
    • Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
    • Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
    • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth
    • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
    • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
    • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

    134,99 €
     TTC

    Quantité

     En Stock



    Paiement sécurisé par CB



    Expédié le jour même



    Retour sous 14 jours

    Request info about this product

    Processeur

    LGA1200 package:

    • 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    • 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*

    * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.

    • L3 cache varies with CPU

    (Please refer to "CPU Support List" for more information.)

    Chipset

    • Intel® B560 Express Chipset

    Mémoire

    11th Generation Intel® Core™ i9/i7/i5 processors:

    • Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

    10th Generation Intel® Core™ i9/i7 processors:

    • Support for DDR4 2933/2666/2400/2133 MHz memory modules

    10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:

    • Support for DDR4 2666/2400/2133 MHz memory modules
    • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules

    (Please refer "Memory Support List" for more information.)

    Carte Graphique Intégrée

    Integrated Graphics Processor-Intel® HD Graphics support:

    • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

    * The DVI-D port does not support D-Sub connection by adapter.

    • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3

    * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.

    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

    * Support for HDMI 1.4 version and HDCP 2.3.

    (Graphics specifications may vary depending on CPU support.)

    • Support for up to 3 displays at the same time

    Audio

    • Realtek® Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    • Support for S/PDIF Out

    Réseau

    • Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

    Port d'expansion

    • 1 x PCI Express x16 slot, running at x16 (PCIEX16)

    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)

    • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    • 2 x PCI Express x1 slots

    (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

    Interface de Stockage

    CPU:

    • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)

    Chipset:

    • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
    • 6 x SATA 6Gb/s connectors

    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

    • Intel® Optane™ Memory Ready

    * System Acceleration with Intel® Optane™ Memory enabled on the M2P_CPU connector only.

    USB

    Chipset:

    • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • 6 x USB 2.0/1.1 ports available through the internal USB headers

    Chipset+USB 2.0 Hub:

    • 2 x USB 2.0/1.1 ports on the back panel

    Connecteurs d'entrées/sorties internes

    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 1 x water cooling CPU fan header
    • 3 x system fan headers
    • 1 x addressable LED strip header
    • 1 x RGB LED strip header
    • 2 x M.2 Socket 3 connectors
    • 6 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB 3.2 Gen 1 header
    • 3 x USB 2.0/1.1 headers
    • 1 x S/PDIF Out header
    • 2 x Thunderbolt™ add-in card connectors
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    • 1 x serial port header
    • 1 x parallel port header
    • 1 x Clear CMOS jumper
    • 1 x Q-Flash Plus button

    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

    Connecteur du Panneau Arrière

    • 2 x USB 2.0/1.1 ports
    • 1 x PS/2 keyboard/mouse port
    • 1 x D-Sub port
    • 1 x DVI-D port
    • 1 x DisplayPort
    • 1 x HDMI port
    • 4 x USB 3.2 Gen 1 ports
    • 1 x RJ-45 port
    • 6 x audio jacks

    Contrôleur d'Entrée/Sortie

    • iTE® I/O Controller Chip

    Monitorage Matériel

    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Overheating warning
    • Fan fail warning
    • Fan speed control

    * Whether the fan speed control function is supported will depend on the cooler you install.

    BIOS

    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Fonctionnalités Exclusives

    • Support for APP Center

    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    • @BIOS
    • EasyTune
    • Fast Boot
    • Game Boost
    • ON/OFF Charge
    • RGB Fusion
    • Smart Backup
    • System Information Viewer
    • Support for Q-Flash Plus
    • Support for Q-Flash
    • Support for Xpress Install

    Logiciels Fournis

    • Norton® Internet Security (OEM version)
    • Realtek® 8118 Gaming LAN bandwidth Control Utility

    Système d'Exploitation

    • Support for Windows 10 64-bit

    Dimensions

    • ATX Form Factor; 30.5cm x 22.5cm

    Note

    • Supported by 11th Generation processors only.

    Remarque

    • Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    • Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    Code EAN-13 : 4719331815509

    Fiche technique

    Référence Fabricant
    B560 HD3
    Format Carte Mère
    ATX
    Chipset Carte Mère
    Intel B560
    Socket CPU
    Intel 1200
    Fréquence Mémoire supportée
    3200 Mhz
    Type de Mémoire
    DDR4 (DIMM 288 pins)
    Dimensions (LxPxH)
    30.5 x 22.5 cm
    Garantie Constructeur (Mois)
    36
