- Nouveau
INFORMATIONS GÉNÉRALES |
||
Marque
|
Asus
|
|
Référence fabricant (SKU)
|
90MB1D50-M0EAY0
|
|
Modèle
|

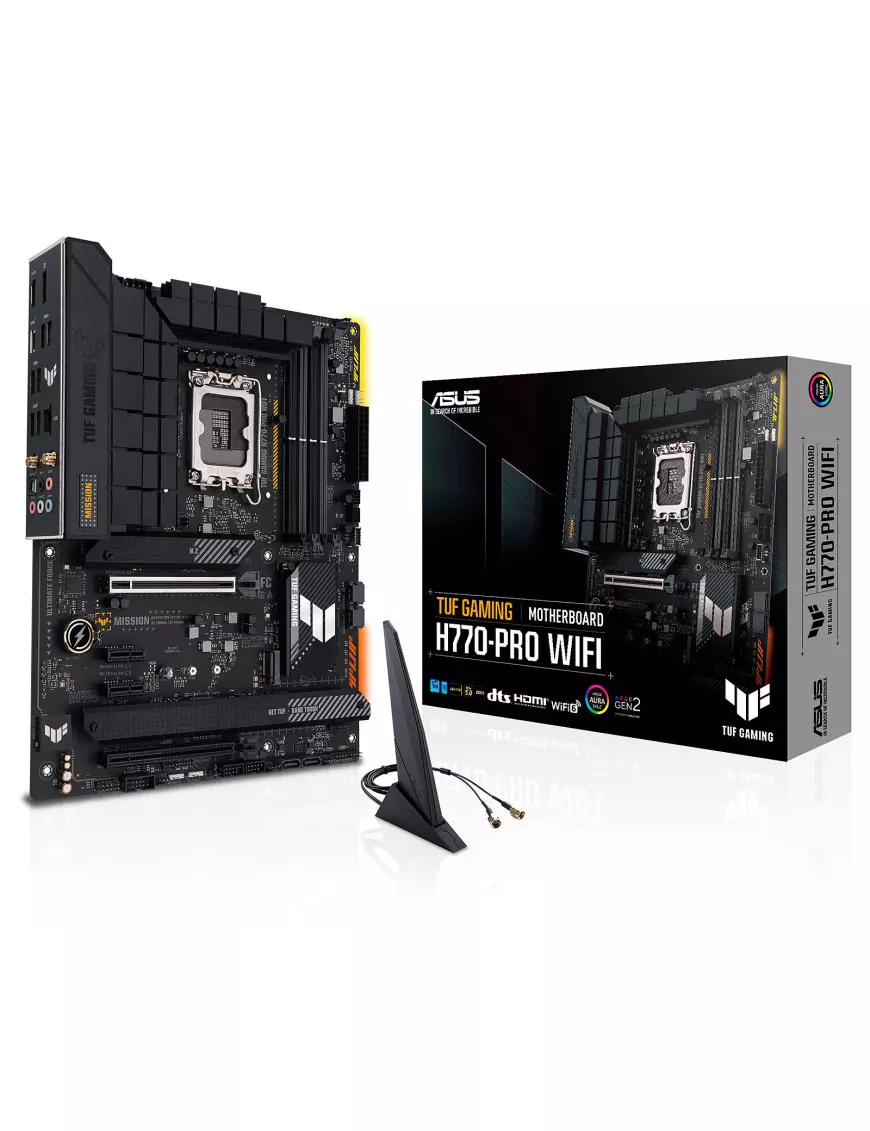

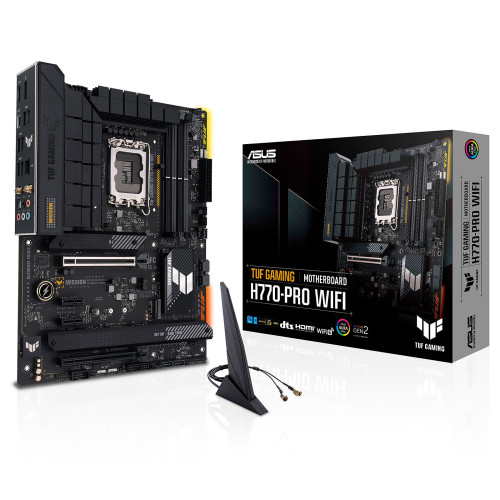

TUF GAMING H770-PRO WIFI
|
|
PROCESSEUR |
||
Compatibilité CPU
|
Processeurs Intel de 12ème et 13ème Génération
|
|
Socket
|
LGA1700
|
|
CHIPSET |
||
Chipset
|
Intel® H770 Chipset
|
|
MÉMOIRE |
||
Type
|
DDR5
|
|
Fréquences mémoire
|
7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800
|
|
Technologie Dual Channel
|
Oui
|
|
Capacité maximale par slot
|
32Go
|
|
Capacité maximale
|
128Go
|
|
RAM ECC prise en charge
|
Non
|
|
CHIPSET GRAPHIQUE EMBARQUÉ |
||
Chipset graphique embarqué
|
Non
|
|
Compatible avec le chipset graphique embarqué dans le CPU
|
Oui
|
|
AUDIO |
||
Chipset audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC
|
|
Canaux
|
Jusqu'à 7.1
|
|
RÉSEAU |
||
Ethernet RJ45
|
1 x Intel® 2.5Gb Ethernet
|
|
WiFi
|
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
|
|
Bluetooth
|
Bluetooth 5.2
|
|
STOCKAGE |
||
Ports SATA
|
4 x SATA 6Gb/s
|
|
Ports M.2
|
CPU :
M.2_1 slot (Key M), type 2242/2260/2280 (compatible PCIe 4.0 x4) Chipset : M.2_2 slot (Key M), type 2242/2260/2280 (compatible PCIe 4.0 x4 mode) M.2_3 (Key M), type 2242/2260/2280/22110 (compatible PCIe 4.0 x4 mode) M.2_4 (Key M), type 2242/2260/2280 (compatible PCIe 4.0 x4 & SATA modes) |
|
Compatibilité RAID
|
Intel® Rapid Storage Technology compatible PCIe RAID 0/1/5/10 et SATA RAID 0/1/5/10
|
|
SOLTS D'EXTENSION |
||
PCI-Ex 16x
|
1 x PCIe 5.0 x16 slot
|
|
PCI-Ex 8x
|
||
PCI-Ex 4x
|
1 x PCIe 4.0 x16 slot (supports x4 mode)
|
|
PCI-Ex 1x
|
2 x PCIe 3.0 x1 slots
|
|
CONNECTIQUES |
||
Panneau arrière
|
1 x USB 3.2 Gen 2x2 (1 x USB Type-C®)
2 x USB 3.2 Gen 2 (2 x Type-A) 4 x USB 3.2 Gen 1 (4 x Type-A) 1 x DisplayPort 1 x HDMI® 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Sortie optique S/PDIF |
|
Ports USB
|
1 x USB 3.2 Gen 1 (compatible USB Type-C®)
1 x USB 3.2 Gen 1 (supporte 2 x USB 3.2 Gen 1 supplémentaires) 2 x USB 2.0 (supporte 4 x USB 2.0 supplémentaires) |
|
Connecteurs supplémentaires
|
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 4 x M.2 slots (Key M) 4 x SATA 6Gb/s 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
|
CARACTÉRISTIQUES PHYSIQUES |
||
Dimensions
|
305 x 244 mm
|
|
Couleur
|
Noir
|
|
LED
|
Oui
|
|
Format
|
ATX
|
|
GARANTIE |
||
Garantie constructeur
|
36 mois
|
Retrouvez toutes nos Cartes Mères disponibles ICI
Fiche technique
