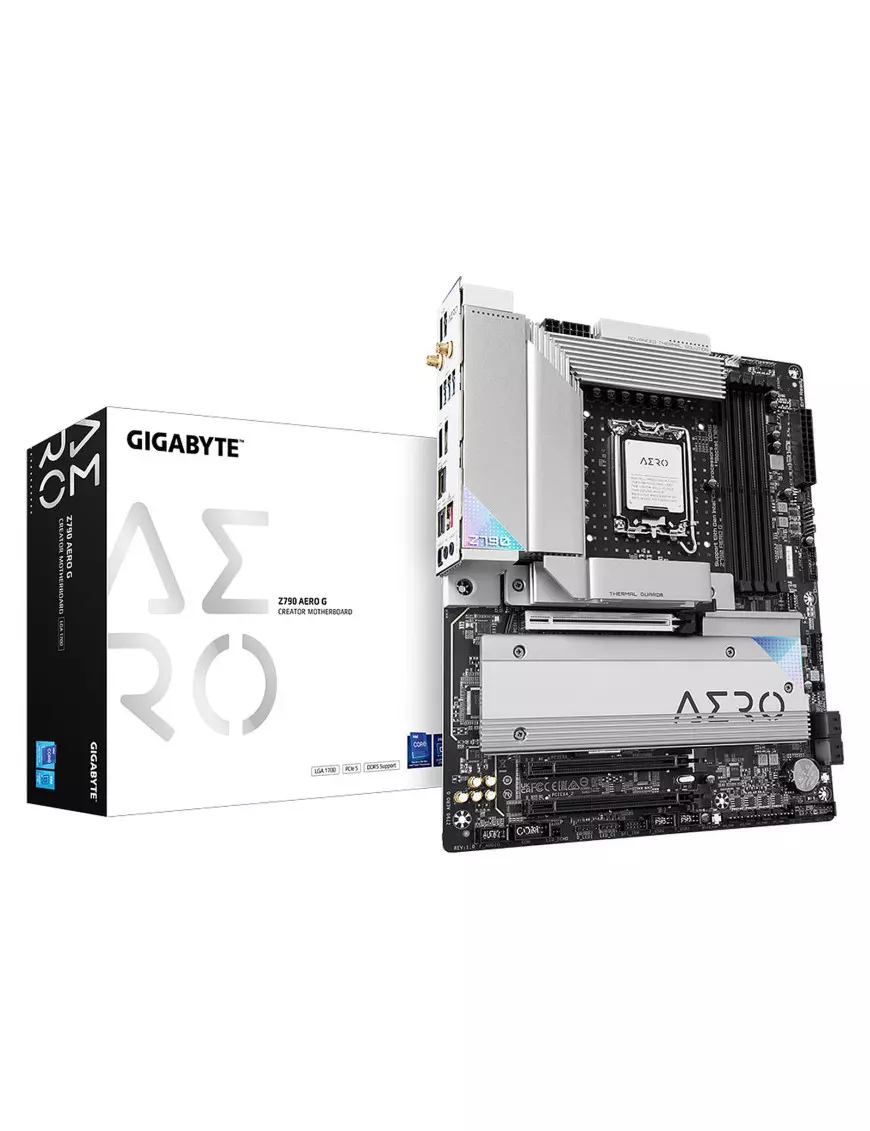

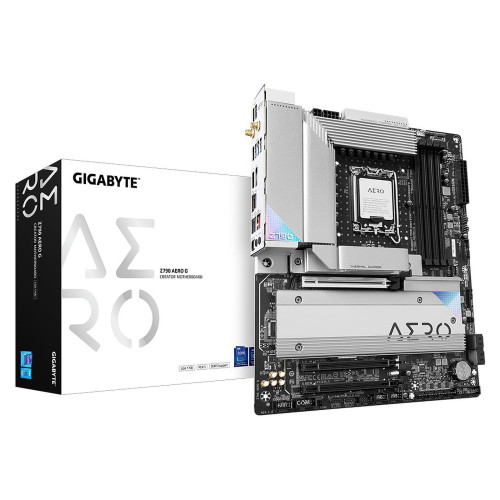

Carte Mère Gigabyte Z790 AERO G DDR5 Socket 1700 Wifi AX

Marque

GIGABYTE

Référence fabricant (SKU)

Z790 AERO G

Modèle

Z790 AERO G

Compatibilité CPU

12ème/13ème Gen de processeurs Intel®,
Processeurs Pentium® Gold et Céléron®

Socket

LGA1700

Chipset

Intel® Z790 Express Chipset

Type

DDR5

Fréquences mémoire

7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000

Technologie Dual Channel

Oui

Capacité maximale par slot

32Go

Capacité maximale

128Go

RAM ECC prise en charge

Non

Chipset graphique embarqué

Non

Mémoire partagée

Oui

Chipset audio

Realtek® ALC1220-VB CODEC

Canaux

2/4/5.1/7.1

Ethernet RJ45

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

WiFi

Intel® Wi-Fi 6E AX211 (WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz)
Compatible Wifi 11AX 160MHz, jusqu'à 2.4Gbps

Bluetooth

Bluetooth 5.3

Ports SATA

4 x SATA 6Gb

Ports M.2

CPU :
1 x M.2 (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
1 x M.2 (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset :
1 x M.2 (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

Compatibilité RAID

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD compatibles avec les stockages SSD NVMe
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA compatibles avec les stockages SATA

PCI-Ex 16x

1 x PCI Express x16 slot, compatible PCIe 5.0 and running at x16 (PCIEX16)

PCI-Ex 8x

Non

PCI-Ex 4x

1 x PCI Express x16 slots, compatible PCIe 4.0 and running at x4 (PCIEX4_1)
1 x PCI Express x16 slots, compatible PCIe 3.0 and running at x4 (PCIEX4_2)

PCI-Ex 1x

Non

Panneau arrière

2 x USB 2.0/1.1
2 x connecteurs d'antenne SMA (2T2R)
4 x USB 3.2 Gen 1
1 x DisplayPort In
1 x HDMI 2.0
2 x USB 3.2 Gen 2 Type-A (rouge)
1 x USB Type-C® port, compatible USB 3.2 Gen 2x2
1 x USB Type-C® port (DisplayPort), compatible USB 3.2 Gen 2
1 x RJ-45
1 x connecteur S/PDIF Out
2 x audio jacks

Ports USB

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers

Connecteurs supplémentaires

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

Dimensions

305 x 244 mm

Couleur

Blanc

LED

Oui

Format

ATX

Garantie constructeur

36 mois
