INFORMATIONS GÉNÉRALES |
Marque | | Gigabyte |
Référence fabricant (SKU) | | B760 GAMING X |

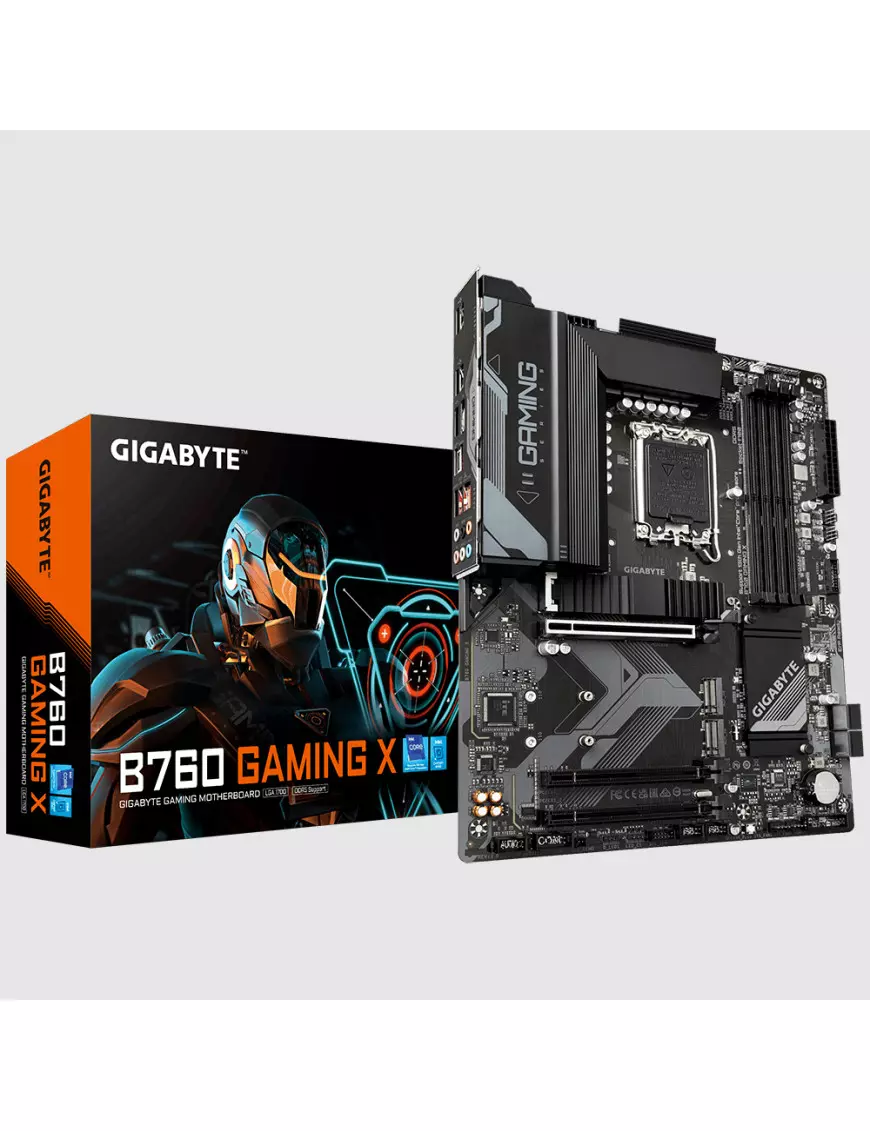

Modèle | | B760 GAMING X DDR5 ATX Socket 1700 |
PROCESSEUR |
Compatibilité CPU | | Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
Socket | | LGA1700 |
CHIPSET |
Chipset | | Intel® B760 Express Chipset |
MÉMOIRE |
Type | | DDR5 |
Fréquences mémoire | | 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s |
Technologie Dual Channel | | Oui |
Capacité maximale par slot | | 32 Go |
Capacité maximale | | 128 Go |
RAM ECC prise en charge | | Oui |
CHIPSET GRAPHIQUE EMBARQUÉ |
Chipset graphique embarqué | | Integrated Graphics Processor-Intel® HD Graphics |
Compatible avec le chipset graphique du CPU | | Oui |
AUDIO |
Chipset audio | | Realtek® Audio CODEC |
Canaux | | 2/4/5.1/7.1-channel |
RÉSEAU |
Ethernet RJ45 | | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
WiFi | | Non |
Bluetooth | | Non |
STOCKAGE |
Ports SATA | | 4 x SATA 6Gb/s connectors |
Ports M.2 | | 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
Compatibilité RAID | | RAID 0, RAID 1, RAID 5, and RAID 10 |
SOLTS D'EXTENSION |
PCI-Ex 16x | | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
PCI-Ex 8x | | 0 |
PCI-Ex 4x | | 0 |
PCI-Ex 1x | | 0 |
CONNECTIQUES |
Panneau arrière | | 1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks |
Ports USB | | 1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports |
Connecteurs supplémentaires | | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper |
CARACTÉRISTIQUES PHYSIQUES |
Dimensions | | 30.5 x 24.4cm |
Couleur | | Noir |
LED | | Non |
Format | | ATX |
GARANTIE |
Garantie constructeur | | 36 mois |
