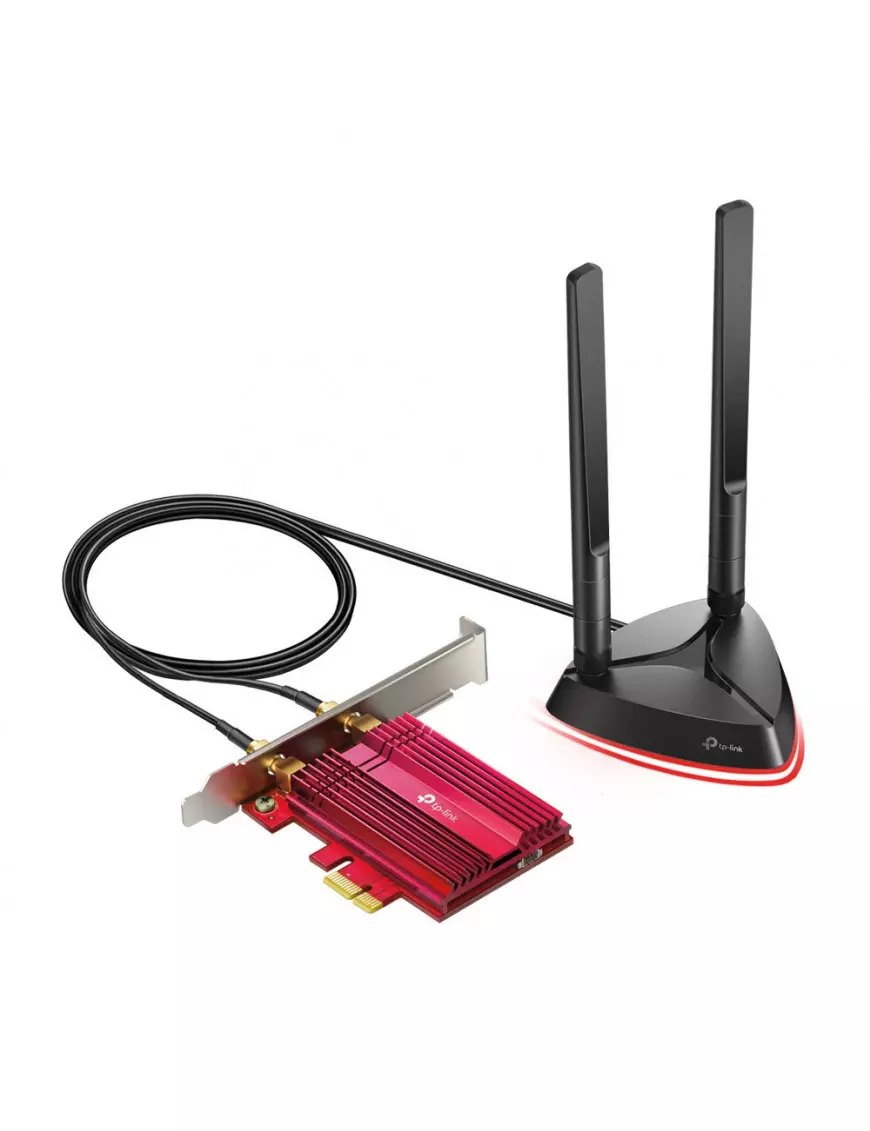

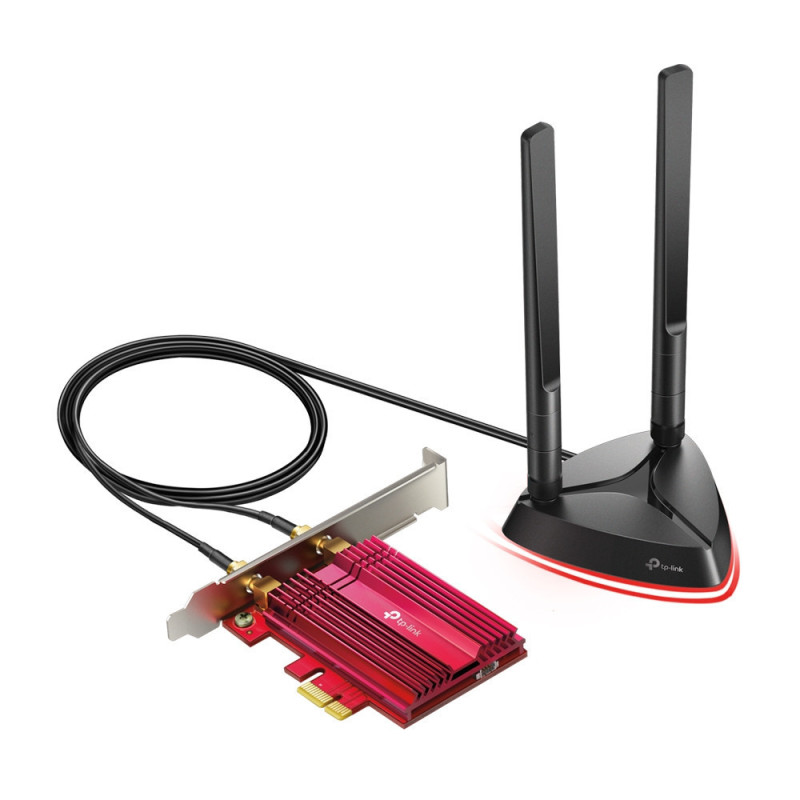

Carte Réseaux PCI-Express Wifi 6 TP-Link Archer TX3000E + Bluetooth 5

CARACTERISTIQUES MATERIELLES

• Dimensions : 95.2 x 120.8 x 21.5 mm
• Type d'antenne : Two High-Gain Dual Band Antennas
• Base d'antenne magnétique
• Chipset : Intel Wi-Fi 6 Chipset

CARACTÉRISTIQUES WIFI

• Standards WiFi IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/g/b 2.4 GHz
• Bluetooth 5.0/4.2/4.0

• Débit du signal WLAN

5 GHz

• 11ax: Up to 2402 Mbps(dynamic)
• 11ac: Up to 1733 Mbps(dynamic)
• 11n: Up to 300 Mbps(dynamic)
• 11a: Up to 54 Mbps(dynamic)

2.4 GHz

• 11ax: Up to 574 Mbps(dynamic)
• 11n: Up to 300 Mbps(dynamic)
• 11g: Up to 54 Mbps(dynamic)
• 11b: Up to 11 Mbps(dynamic)

• Sensibilité de réception WLAN

5 GHz :

• 11ax HT160：-56.25dBm
• 11ax HT80: -59dBm
• 11ax HT40: -62.25dBm
• 11ax HT20: -65dBm
• 11ac HT160：-62dBm
• 11ac HT80: -65.5dBm
• 11ac HT40: -69.75dBm
• 11ac HT20: -73.75dBm
• 11n HT40: -74.5dBm
• 11n HT20: -77.5dBm
• 11a 54Mbps: -77.75dBm
• 11a 6Mbps: -94.5dBm

2.4GHz :

• 11ax HT40: -60.75dBm
• 11ax HT20: -63.75dBm
• 11n HT40: -73dBm
• 11n HT20: -76.25dBm
• 11g 54Mbps: -76.5dBm
• 11b 11Mbps: -89dBm

• Puissance de transmission WLAN : 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) / 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
• WLAN Modes : Infrastructure mode
• Sécurité WiFi : Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
• Technologie de modulation : DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
• Profils Bluetooth : Archer TX3000E support the native BT profiles implemented in Windows 10. For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles

AUTRES

• Certification : CE, FCC, RoHS

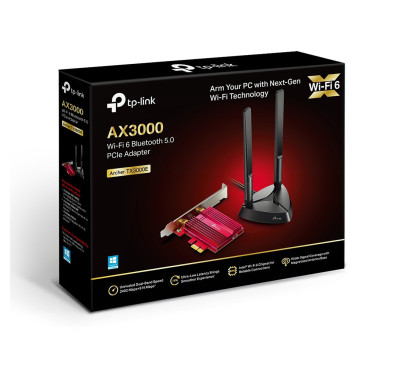

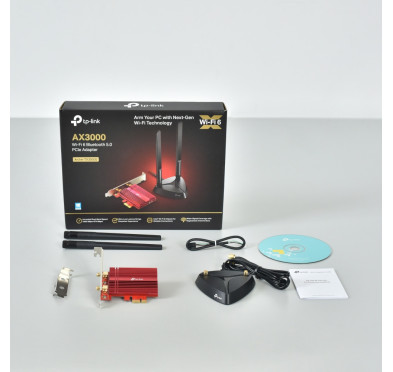

Contenu de l'emballage

• Archer TX3000E
• Magnetized Antenna Base with 1m RF Cable
• Two 5 dBi High Gain Antennas
• Low-Profile Bracket
• Bluetooth Header Cable
• Quick Installation Guide
• Resource CD

• Système requis : Windows 10(64-bit) uniquement

Environnement

• Operating Temperature : 0℃~40℃
• Storage Temperature : -40℃~70℃
• Operating Humidity : 10%~90% non-condensing
• Storage Humidity : 5%~90% non-condensing
