INFORMATIONS GÉNÉRALES | ||
Marque | Gigabyte | |
Référence fabricant (SKU) | B650M D3HP AX | |
Modèle | Carte Mère Gigabyte B650M D3 AX mATX AM5 DDR5 USB3.2 M.2 | |
PROCESSEUR | ||
Compatibilité CPU | Processeurs AMD Ryzen™ 7000 Series | |
Socket | AMD AM5 | |
CHIPSET | ||
Chipset | AMD B650 | |
MÉMOIRE | ||
Type | DDR5 | |
Fréquences mémoire | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MHz | |
Technologie Dual Channel | Oui | |
Capacité maximale par slot | 48 Go | |
Capacité maximale | 192 Go | |
RAM ECC prise en charge | Non | |
CHIPSET GRAPHIQUE EMBARQUÉ | ||
Chipset graphique embarqué | Non | |
Compatible avec le chipset graphique du CPU | Oui | |
AUDIO | ||
Chipset audio | Realtek® Audio CODEC | |
Canaux | High Definition Audio 2/4/5.1/7.1-channel | |
RÉSEAU | ||
Ethernet RJ45 | Realtek® 2.5GbE LAN | |
WiFi | Realtek® Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, compatible 2.4/5/6 GHz | |
Bluetooth | BLUETOOTH 5.3 | |
STOCKAGE | ||
Ports SATA | 4x SATA 6Gb/s | |
Ports M.2 | CPU : 1x M.2 (Socket 3, M key, type 2580 compatible SSD PCIe 4.0 x4/x2) (M2A_CPU) Chipset : 1x M.2 (Socket 3, M key, type 22110/2280 compatible SSD PCIe 4.0 x4/x2 SSD) (M2C_SB) | |
Compatibilité RAID | RAID 0, RAID 1, and RAID 10 pour les SSD NVMe ou SATA ainsi que les HDD SATA | |
SOLTS D'EXTENSION | ||
PCI-Ex 16x | 1x PCI Express x16 slot, compatible PCIe 4.0 x16 | |
PCI-Ex 8x | Aucun | |
PCI-Ex 4x | Aucun | |
PCI-Ex 1x | 1x PCI Express x1 slot, compatible PCIe 3.0 x1 | |
CONNECTIQUES | ||

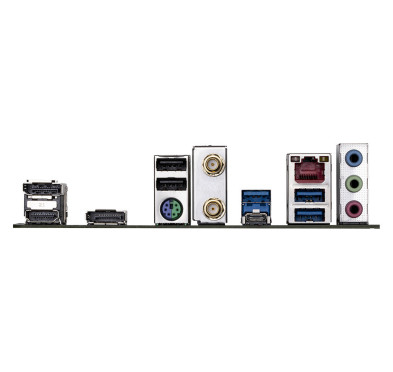

Panneau arrière | 1x PS/2 clavier/souris 1x USB Type-C®, compatible USB 3.2 Gen 1 3x USB 3.2 Gen 1 2x USB 2.0/1.1 1x HDMI 2x DisplayPorts 1 x RJ-45 3 x audio jacks | |
Ports USB | CPU : 1x USB Type-C® sur le panneau arrière, compatible USB 3.2 Gen 1 1x USB 3.2 Gen 1 sur le panneau arrière 1x USB 2.0/1.1 sur le panneau arrière Chipset : 2x USB 3.2 Gen 1 sur le panneau arrière 1x USB Type-C® compatible USB 3.2 Gen 1, disponible sur le connecteur interne - 2x USB 3.2 Gen 1 disponibles sur le connecteur interne - 5 x USB 2.0/1.1 ports (x1 sur le panneau arrière, 4 ports disponibles sur le connecteur interne) | |
Connecteurs supplémentaires | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 2x addressable LED strip headers 1x RGB LED strip header 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1x Q-Flash Plus button 1x reset jumper 1x Clear CMOS jumper | |
CARACTÉRISTIQUES PHYSIQUES | ||
Dimensions | 24.4 x 24.4cm | |
Couleur | Noir | |
LED | Non | |
Format | Micro ATX | |
GARANTIE | ||
Garantie constructeur | 36 mois |
